Black Magic – ATEM Mini Live Streaming Video Switcher!

Key Specifications:

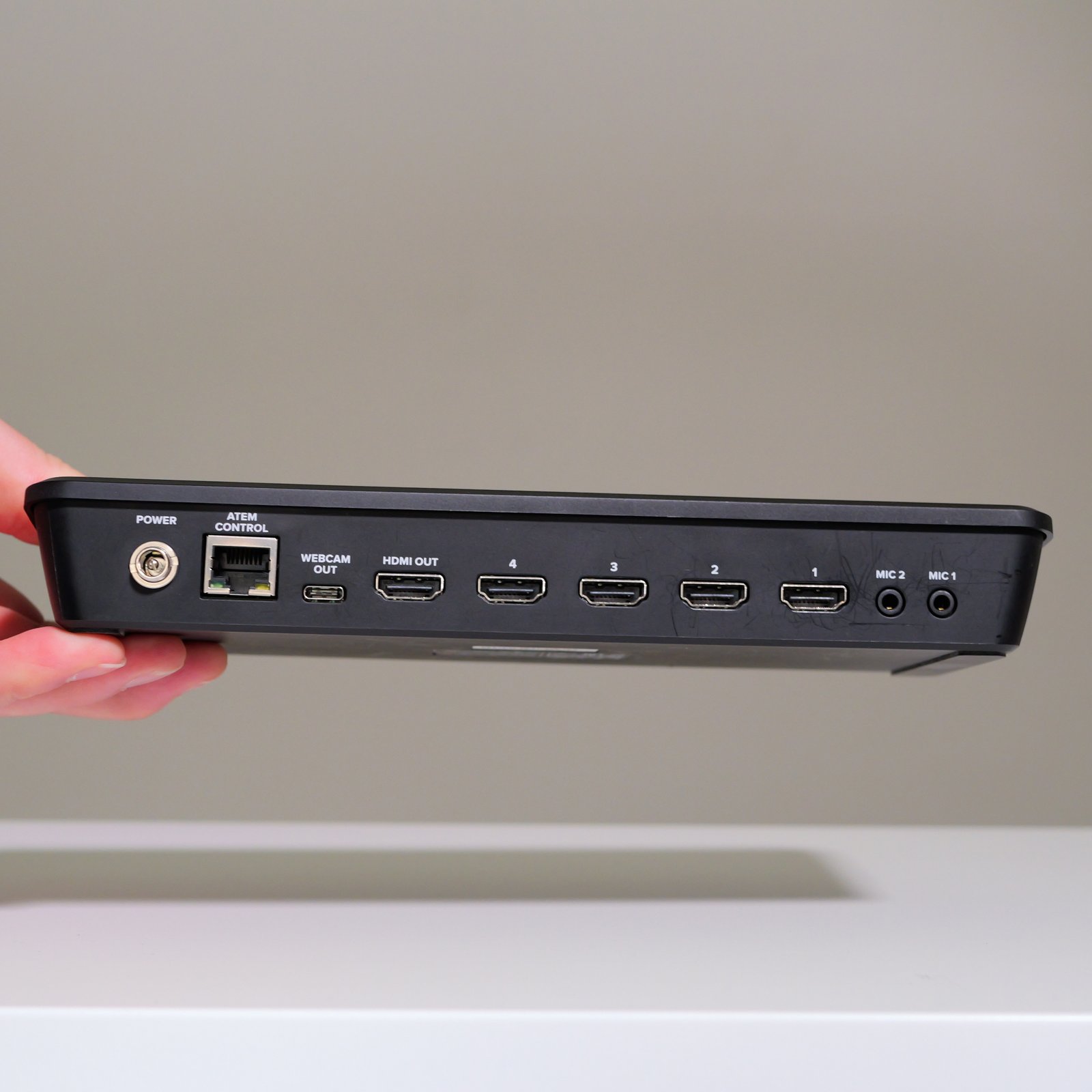

• Total Video Inputs: 4
• HDMI Video Inputs: 4 x HDMI Type A (10-bit HD switchable, 2-channel embedded audio per input)
• Total Video Outputs: 2
• HDMI Program Outputs: 1
• Computer/USB Outputs: 1 x USB Type-C 3.1 Gen 1 (functions as webcam output for software like Zoom, OBS, etc.)
• Total Aux Outputs: 1
• SDI Rates: 1.5G, 3G (not present on base model; HDMI only)
• Video Input Re-Sync: On all 4 HDMI inputs
• Frame Rate and Format Converters: On all 4 HDMI inputs
• HD Video Input Standards: 720p50, 720p59.94, 720p60; 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60; 1080i50, 1080i59.94, 1080i60
• HD Video Output Standards: Same as input standards (program out)
• Ultra HD Video Standards: None
• Video Sampling: 4:2:2 YUV
• Color Precision: 10-bit
• Color Space: Rec.709
• HDMI Input Resolutions from Computers: 1280x720p at 50/59.94/60 Hz; 1920x1080p at 23.98/24/25/29.97/30/50/59.94/60 Hz; 1920x1080i at 50/59.94/60 Hz
• Colorspace Conversion: Hardware-based real-time
• Audio Mixer: 6 input x 2-channel mixer (selectable On/Off/Audio-Follow-Video per channel, gain control, level/peak metering); Fairlight enhancements including Compressor, Gate, Limiter, 6-band parametric EQ; Master gain control
• Total Audio Inputs: 2 x 3.5mm stereo mini jack (unbalanced analog)
• Total Audio Outputs: None (embedded audio only)
• Analog Input Delay: Up to 8 frames
• Input Impedance: 1.8kΩ
• Max Input Level: +6dBV
• Mic Plug-in Power: Available on both 3.5mm inputs
• Upstream Keyers: 1
• Downstream Keyers: 1
• Advanced Chroma Keyers: 1
• Linear/Luma Keyers: 2
• Transition Keyer: DVE only
• DVE: 1 x 2D DVE (for picture-in-picture effects)
• Interface: ATEM Software Control (free for Mac/Windows)

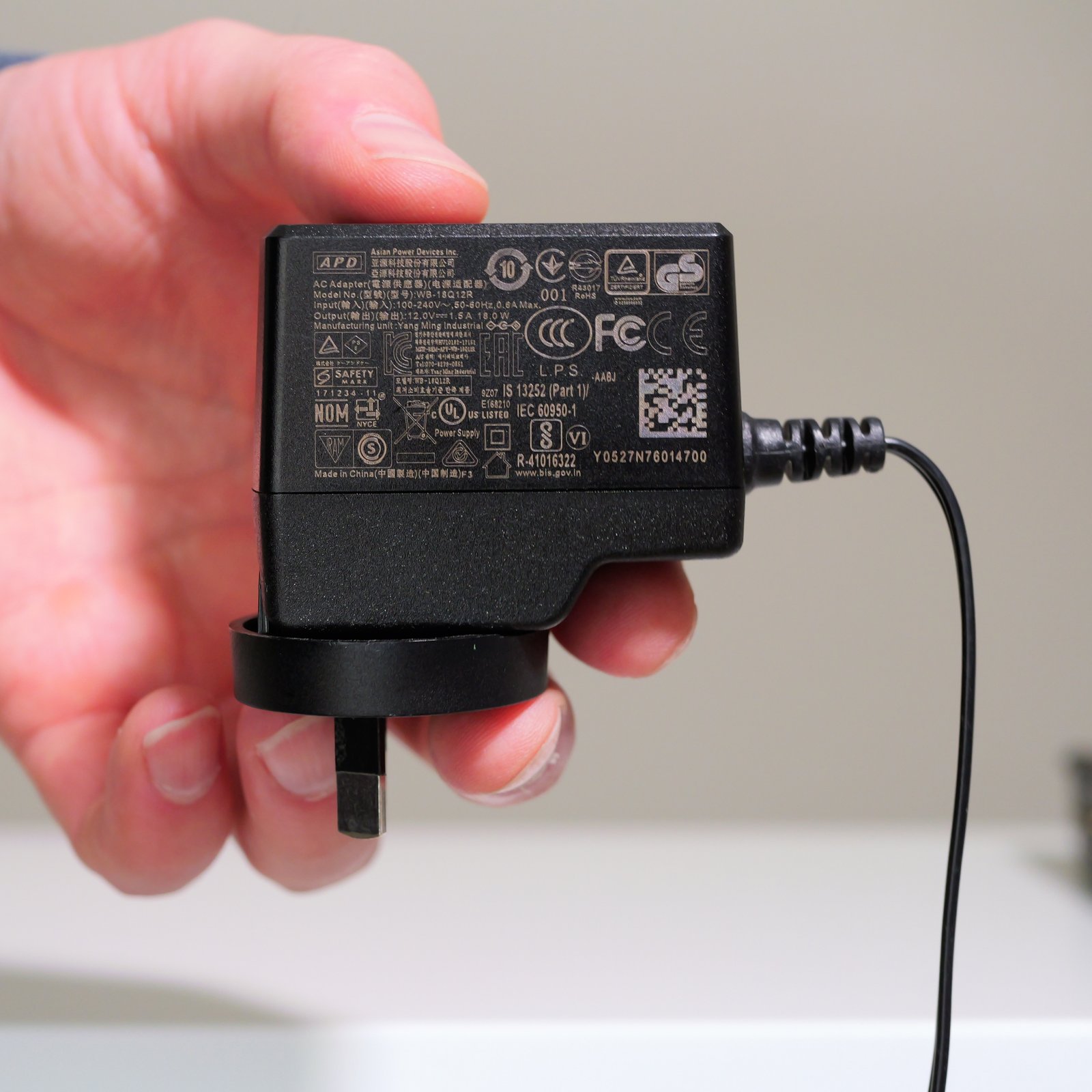

• Power Supply: 1 x External 12V DC power supply (included with international adapters)
• Power Usage: 18W
• Operating Temperature: 5°C to 40°C (41°F to 104°F)
• Storage Temperature: -10°C to 60°C (14°F to 140°F)
• Relative Humidity: 0% to 90% non-condensing
• Physical Dimensions: Compact desktop form factor (exact measurements typically around 210mm x 98mm x 44mm, but confirm with official for precision)
• Weight: Approximately 0.7–1 kg (varies slightly by source)

• Please note: excellent condition and original box included.
